- Modeling Block -

Problem:

Revit’s default Project Browser has several limitations:
Lack of clear categorization for items such as views, sheets, families, and materials, making navigation cumbersome.
Missing preview capabilities, forcing users to rely on trial-and-error to identify items.
The vertical expansion of lists for selection presents a cluttered and inefficient interface for quickly locating specific objects.

Solution:

A custom multi-tabbed and context-aware browser is designed to improve clarity, organization, and usability with categorized sections, horizontal tab grouping and enhanced interaction,
This revamped structure provides an intuitive and efficient interface, significantly improving the speed and accuracy of object selection and project navigation.

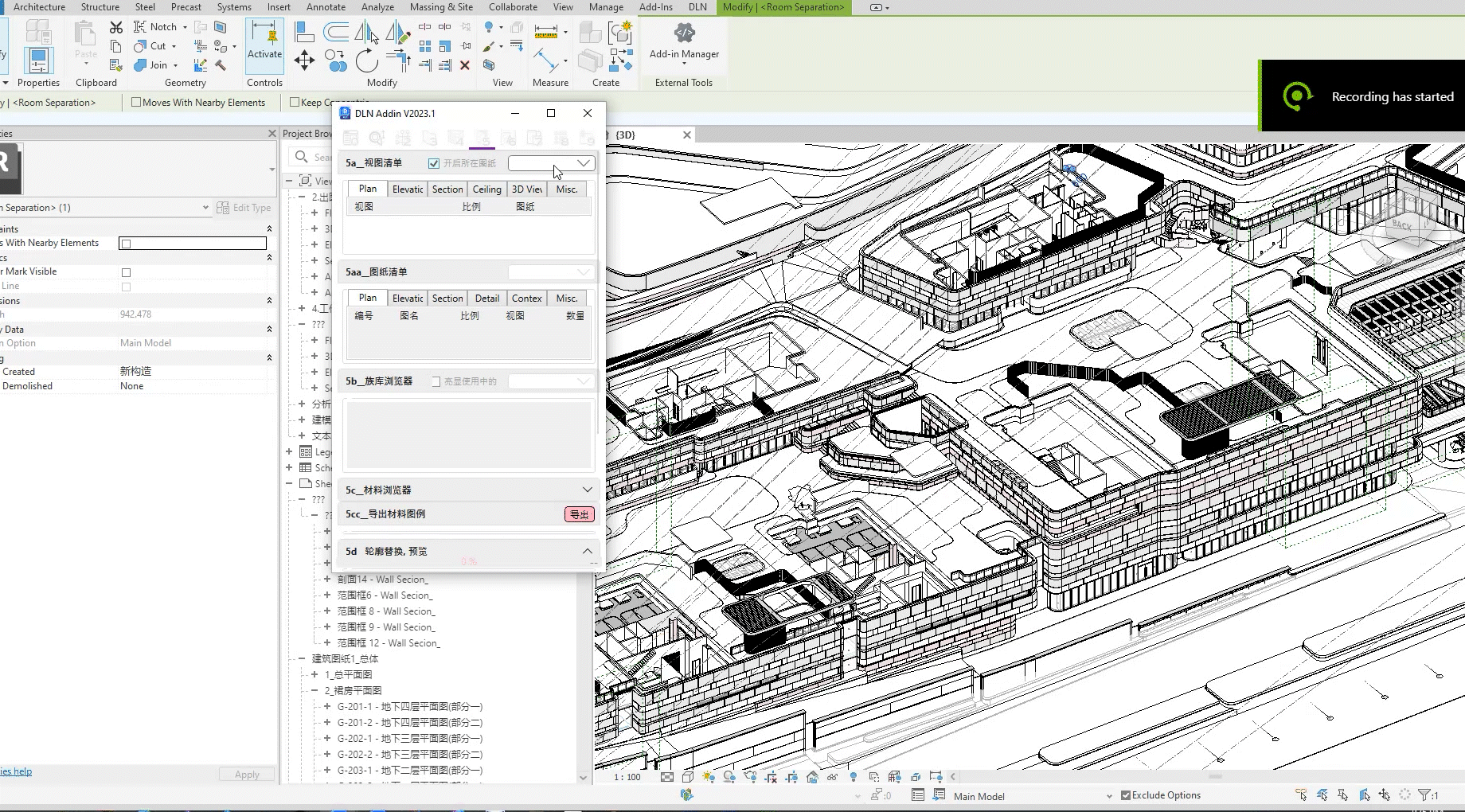

5a__View List :

1. Select a view category from the dropdown list. The tool will generate related view lists.
2. Choose the desired view type from the tabs in the list.
3. Double left-click on an item to open the view or the sheet containing the selected view.

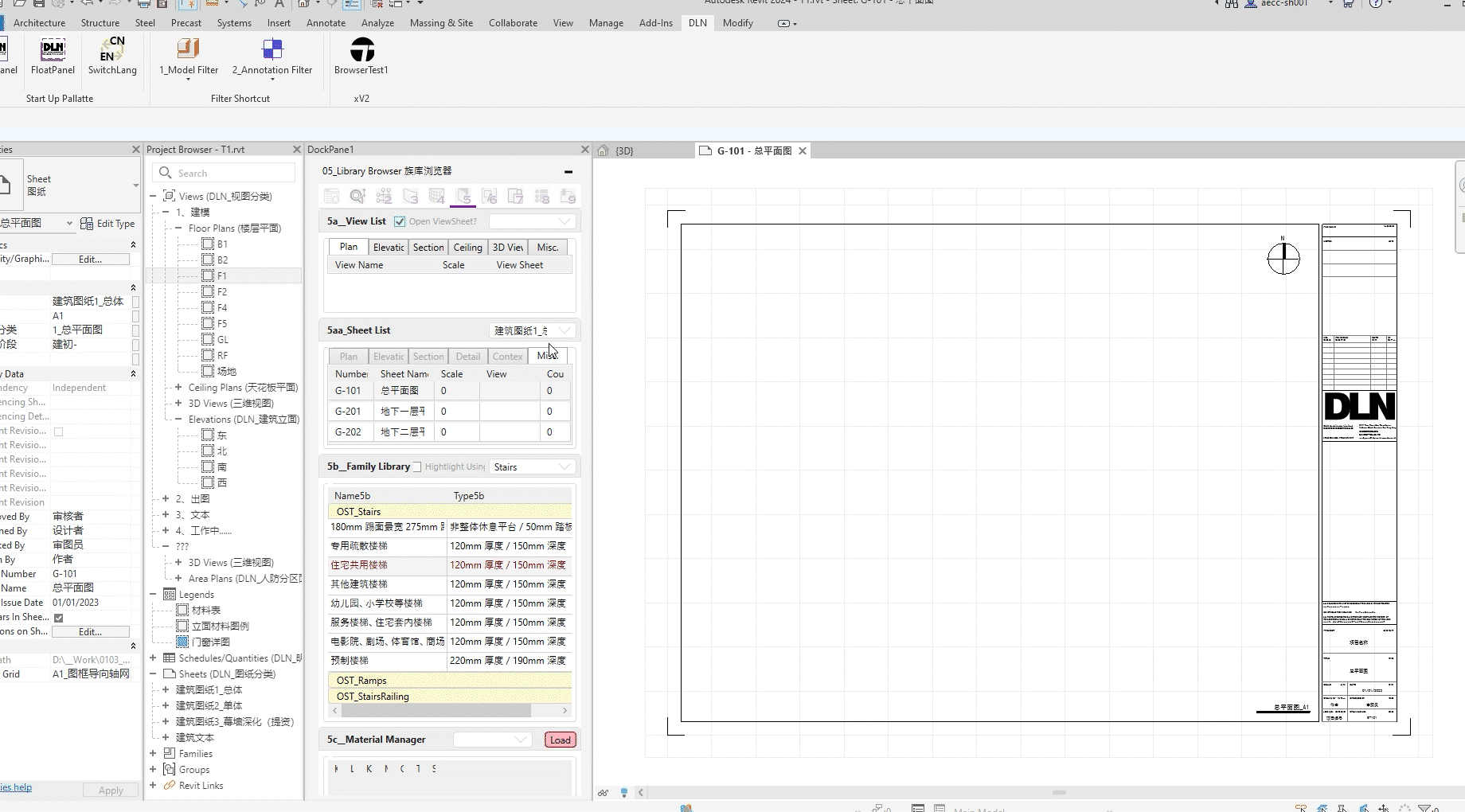

5aa_Sheet List :

1. Select a sheet category from the dropdown list. The tool will generate related sheet lists.
2. Choose the desired view type from the tabs in the list.
3. Double left-click on an item to open the sheet containing the specified view type.

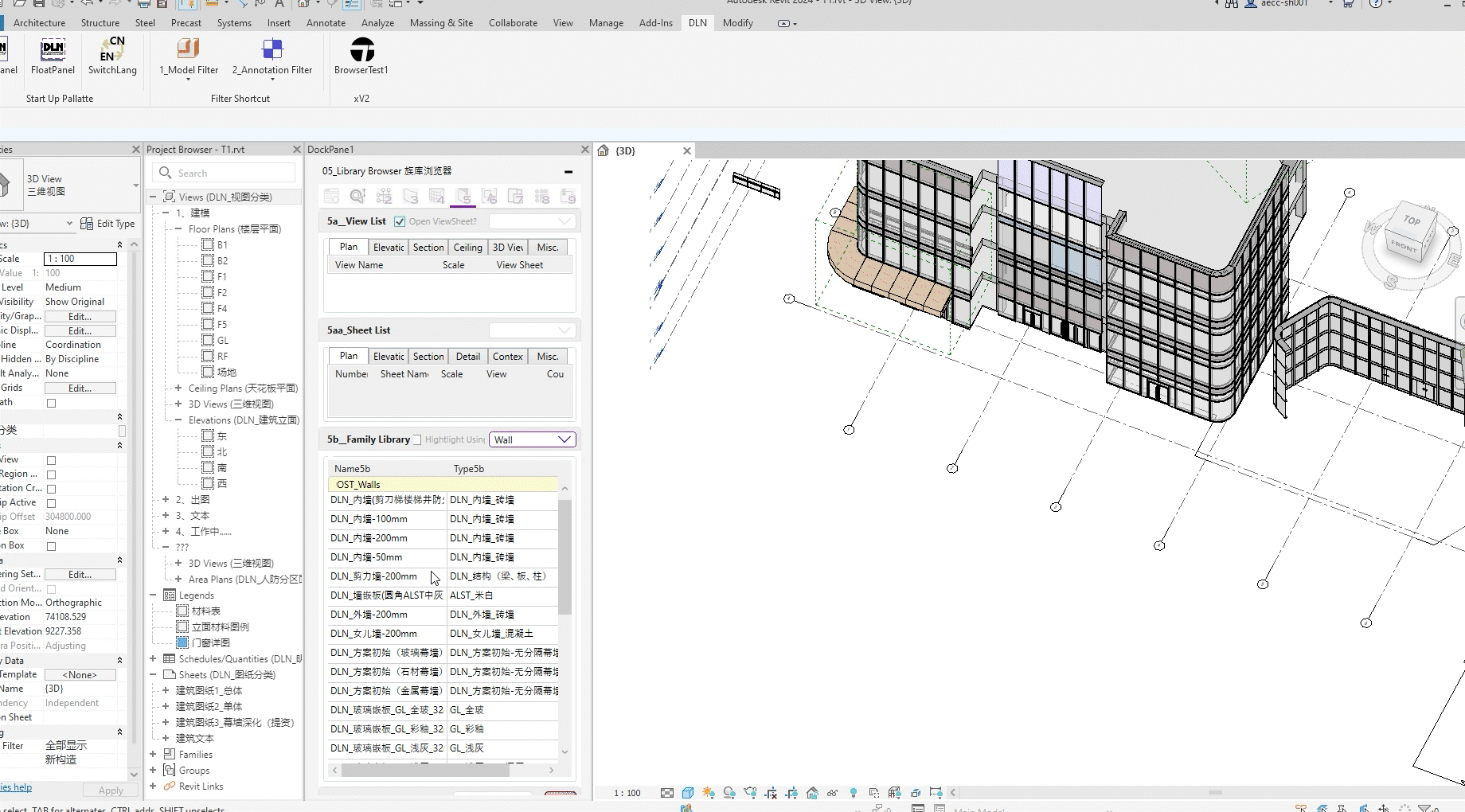

5b__Family Library :

1. Select a category from the dropdown list. The tool will generate a related type list.
2. Right-click an item to preview the element type.
3. Double left-click an item to activate the tool for quiclly placing the element on the canvas.

5c__Material Manager :

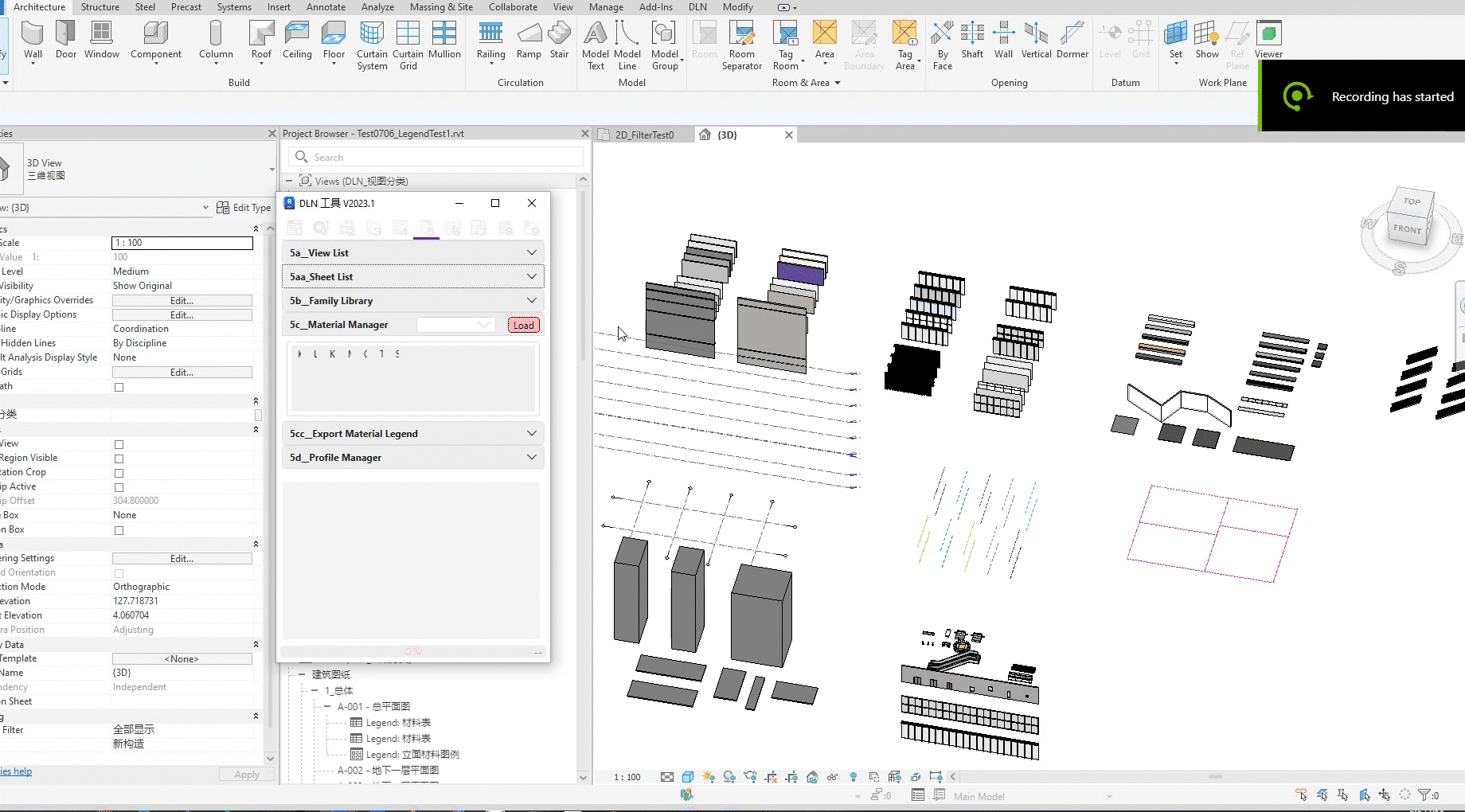

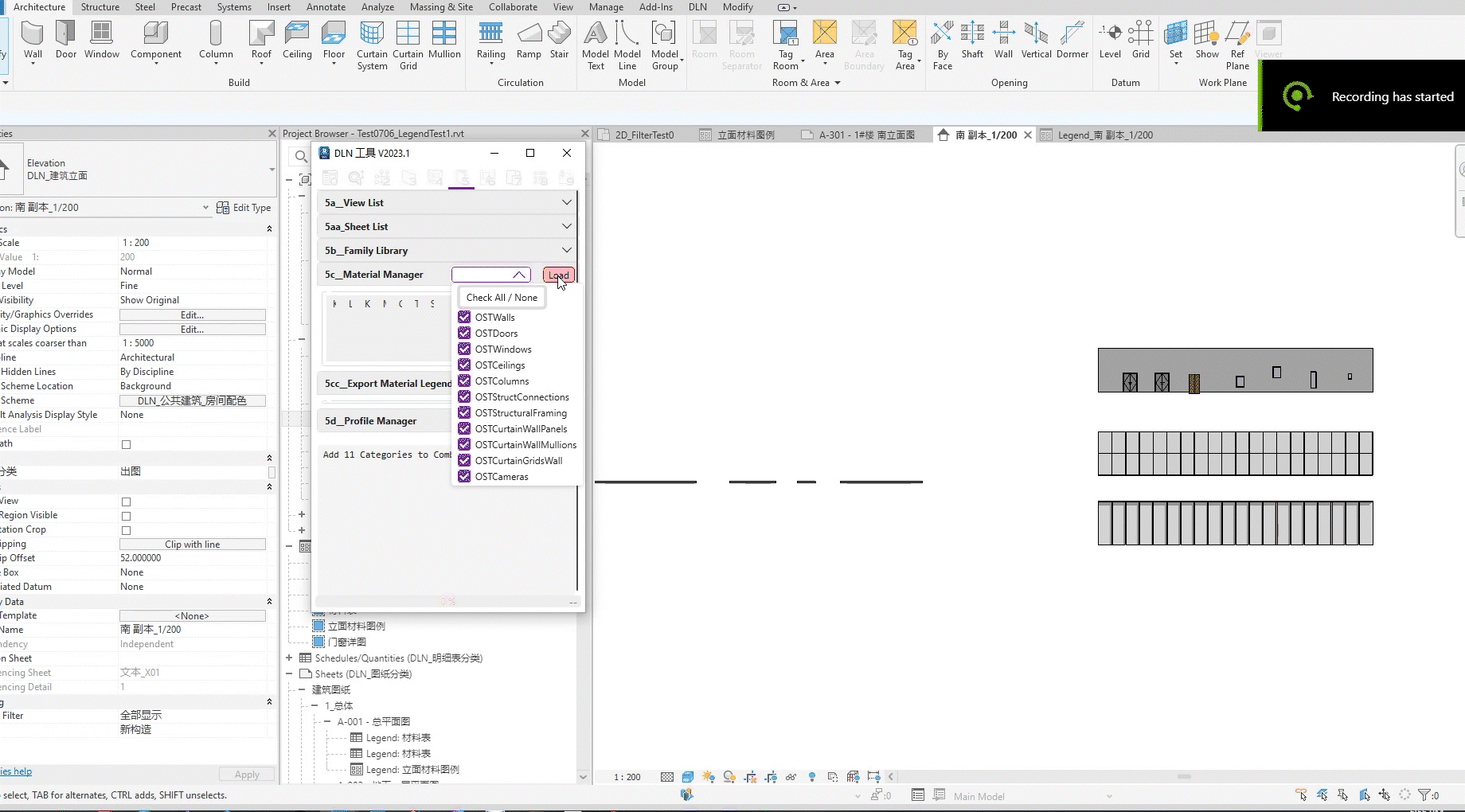

1. Select a category from the dropdown list, then press the "Load" button to load related materials from the current view.

5cc__Export Material Legend :

1. Press the "Write" button to generate legends based on the material list from [5c].
